20~33kW On-grid PV Kits

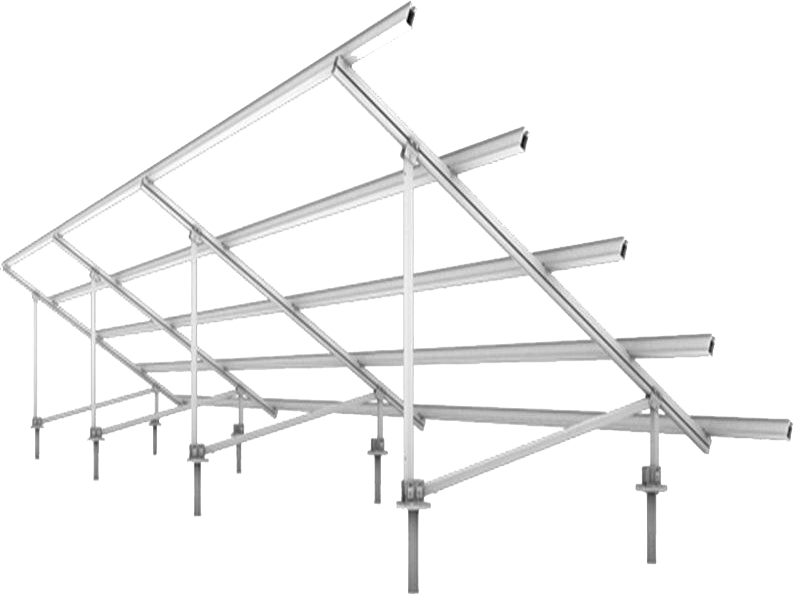

Fortune Energy provides any scale PV power plant design for customers based on pvsys software. On-grid system usually includes photovoltaic modules, On-grid inverter and racking. According to the site conditions and the power generation needs of customers, Fortune Energy will avoid all potential interference affecting the PV power generation, optimize the layout design and save the overall construction cost.
BRAND
:
MODEL
:
FESS-G
SYSTEM TYPE
:
On-grid
POWER
:
20kW~33kW
MODULE
:
Poly or Mono
INVERTER
:
20kW~33kW On-grid Three-Phase
WARRANTY
:
System 1 Year; Modules 25 Years; Inverter 5 Years
  • DETAILS
Model FESS-G20K-DT FESS-G25K-DT FESS-G30K-DT FESS-G33K-DT
DC Input Data
Max.DC Power 26000W 32500W 37000W 39000W
Max.DC Voltage 1000V
MPPT voltage Range 250-950V
Start-up  Voltage 350V
Min. DC Voltage 200V
No. of MPP Trackers 2
No. of Input Strings per  Tracker 2/2 2/3 3/3 3/3
Max. DC Input Current 20A/20A 20A/30A 30A/30A 30A/30A

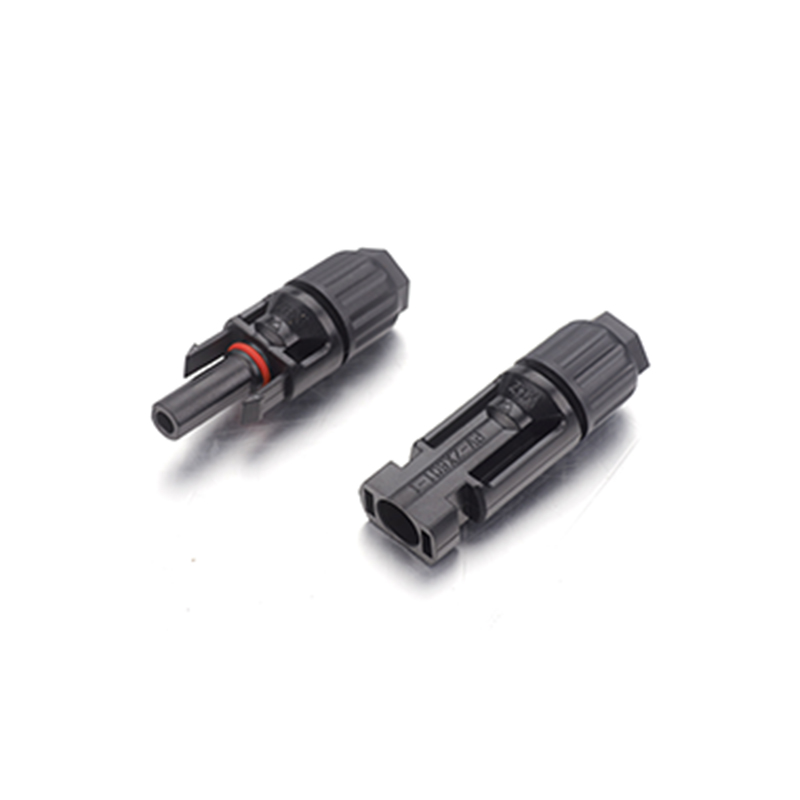

Type of DC Connector MC4
DC Switch Integrated
AC Output Data
Rated AC Power 20000W 25000W 30000W 33000W
Max.output power 22000W 27600W 30000W 33000W
Rated AC Current 29A 36.5A 43A 48A
Max. AC Current 32A 40A 43A 48A
Nominal AC Voltage/Range 400V/320-480V
Grid frequency/ range 50HZ/60HZ  45~55HZ/55~65HZ
Power Factor[cos φ] 0.8leading ~0.8lagging ( full load)
Total Harmonic Distortion [THDi] <3%
Number of output phases: 3+N+PE,3+PE
Efficiency
Max.Efficiency 98.30% 98.40% 98.50% 98.50%
Euro Effciency 98.00% 98.10% 98.20% 98.20%
MPPT Accuracy 99.90% 99.90% 99.90% 99.90%
Protection
DC Insulation Monitoring Integrated
Input Reverse Polarity Protection Integrated
Output Over Current Protection Integrated
Anti-island Protection Integrated
GFCI Monitoring Integrated
OverHeat Protection Integrated
SPD Standard(TypeⅡ), IEC61643-11:2011/EC61643-11:2012/UL1449 Ed.4/ EN50539-11:2013
General Data
User Interface LCD
Communication RS485(standard),WIFI (optional)/GPRS(optional)
Ambient Temperature Range -25 ℃ ~ 60 ℃(> 45 ℃ Derating Operation)
Relative Humidity 0-98%(No condensation)
Operating Altitude 4000m(>2000m derating Operation)
Standby Self Consumption <0.2W
Topology Transformerless
Cooling Fan Fan Fan Fan
Protection Grades IP65
Noise <35dB
Warranty 5 year(Standard),10/15/20/25 year(Optional)
Certifications & Standards
Grid Regulation VDE-AR-N-4105, VDE 0126-1-1+A1, CE, G59/3, UTE C15-712-1,
MEA, PEA, AS4777, EN50438,NB/T 32004-2013,CEI-021
Safety Regulation IEC 62109-1, IEC 62109-2,AS/NZS 3100
EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4,
EN 61000-4-16, EN 61000-4-18, EN 61000-4-29
