1kW~3kW/100V~120V Off-grid PV Kits

Fortune Energy provides turnkey solutions of off grid PV system for customers. Off-grid/island system usually includes photovoltaic module, battery pack, off-grid inverter and racking. Fortune Energy will customize a modular, scalable and optional off-grid integrated system according to the site conditions and the power demand of customers.
BRAND
:
MODEL
:
FESS-F
POWER
:
1kW~3kW/100VAC~120VAC
MODULE
:
Poly or Mono
SYSTEM TYPE
:
Off-grid Split-style

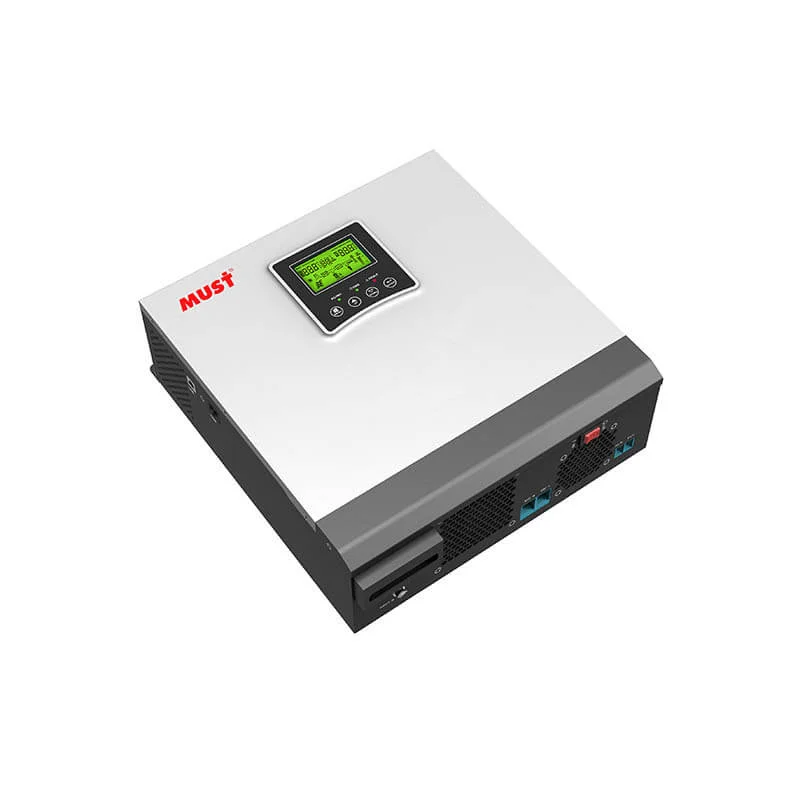

INVERTER
:
1kW~3kW Off-grid SIngle-Phase

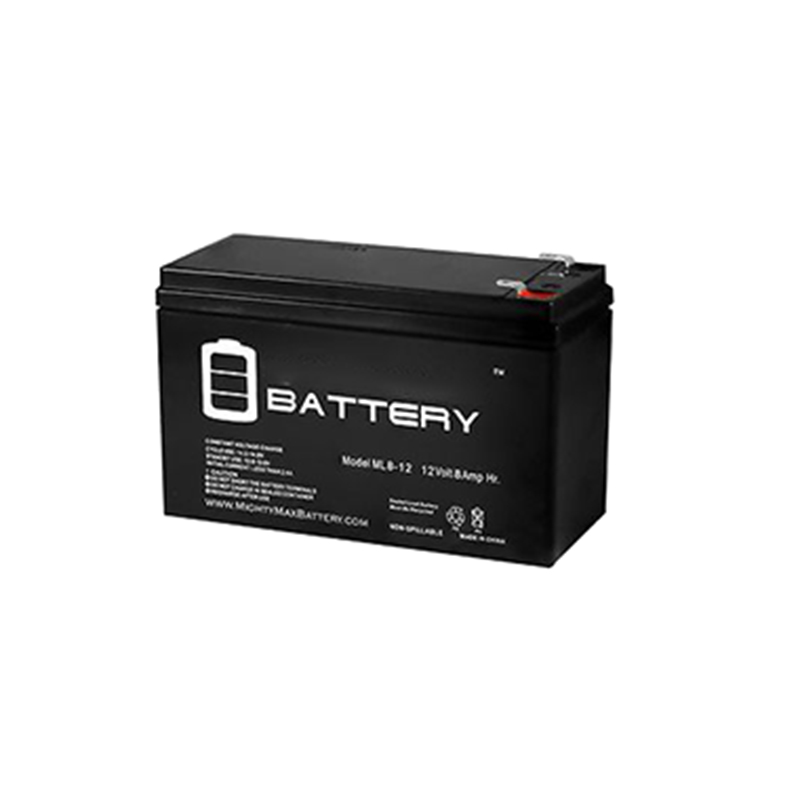

BATTERY
:
Li-on/Lead-acid
WARRANTY
:
System 1 Year; Modules 25 Years; Inverter 1 Year
  • DETAILS
MODELFESS-F1024FESS-F1524FESS-F2024FESS-F2524FESS-F3024FESS-F3048
Nominal Battery System Voltage24VDC48VDC
INVERTER OUTPUT
Rated power1000W1500W2000W2500W3000W3000W
Surge Power2000W3000W4000W5000W6000W6000W
WaveformPure sine wave
AC voltage regulation (Batt.mode)(100VAC~120VAC)±5%
Inverter efficiency (peak)93%
Transfer time10ms (for personal computer) 20ms (for home appliance)
AC INPUT
Voltage120VAC
Selectable voltage range90~145VAC (for personal computer) 65~145VAC (for home appliances) 107~132VAC (CDE4105)
Frequency range50Hz (Auto sensing)
BATTERY
Normal voltage24VDC48VDC
Floating charge voltage27VDC54VDC
Overcharge protection31VDC60VDC
SOLAR CHARGER & CHARGER
Maximum PV Array Open Circuit Voltage145VDC
PV Array MPPT Voltage Range30~130VDC64~130VDC
Standby Power Consumption2W
PV input power power1440W/1920W2880W/3840W
Maximum solar charge current60A/80A
Maximum efficiency98%
Maximum AC charge current60A
Maximum charge current120A/140A
OTHER
Humidity5% to 95% Relativ Humidity (non-condensing)
Operating Temperature0℃ – 55℃
Storage Temperature-15℃ – 60℃
