9kW~12kW Hybrid PV Kits

Hybrid photovoltaic system usually includes photovoltaic modules, battery pack, hybrid inverter and racking. Fortune Energy has designed all kinds of hybrid photovoltaic systems, which can provide reliable energy solutions for residential and industrial users with full consideration of costs and benefits in combination with customers' needs.
BRAND
:
MODEL
:
FESS-H
SYSTEM TYPE
:
Hybrid Split-style
POWER
:
9kW~12kW
MODULE
:
Poly or Mono
INVERTER
:

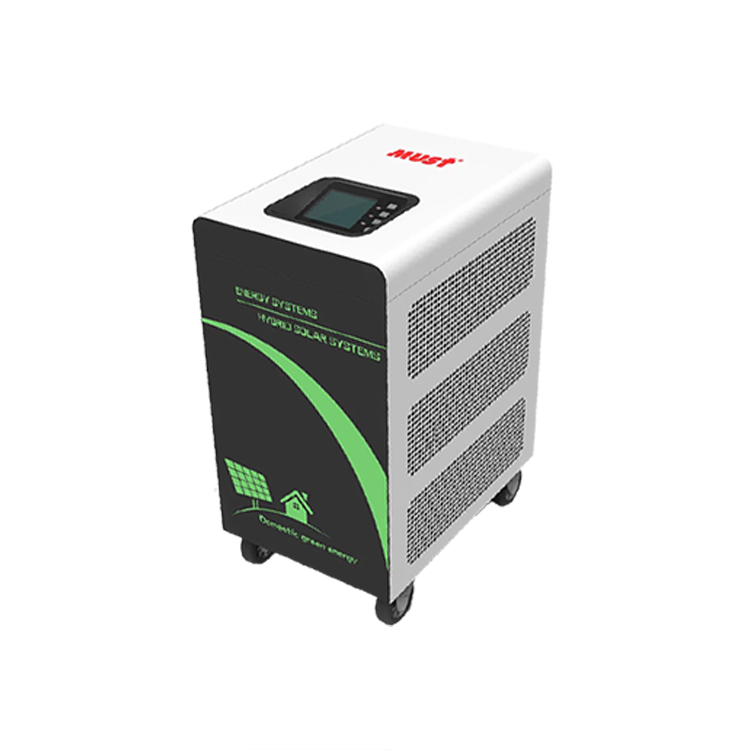

9kW~12kW Hybrid Three-Phase
BATTERY
:
Li-on/Lead-acid
WARRANTY
:
5 YEARS
  • DETAILS
ModelFESS-H9048-TFESS-H12048-T
Default Battery System Voltage48VDC
INVERTER OUTPUT
Rated output power9000W12000W
Output wavePure sine wave
Nominal output voltage230 VAC (P-N) / 400 VAC (P-P)
Nominal output current13.0A per phase17.4A per phase
Nominal output frequency50 Hz / 60 Hz
Rate of wave distortion(THD)(Linearity loads)Off grid≤2%;Grid discharge ≤3%;Grid charge ≤3%
Inverting efficiency>93%
Power factor0.9 lead – 0.9 lag
Overload capability100%<load≤110%,30 minutes; 110%<load≤125%,1 minutes; 125%<load≤150%,30 seconds; load>150%,10 seconds; Short circuit,5 seconds
AC INPUT
AC input maximum current26.0A per phase34.8A per phase
Nominal frequency50Hz / 60Hz
Acceptable input voltage rangeDefaults 186Vac ~253Vac per phase; Narrow 174Vac ~272Vac per phase; Wide    95Vac ~272Vac per phase
BATTERY
Nominal Voltage48VDC
Low Voltage Protection PointCharger 34.0VDC;Inverter 40.0VDC
Absorption Voltage50.0VDC
Refloat Voltage54.8VDC
Float Voltage57.2VDC
SOLAR CHARGER & AC CHARGER
PV Open Circuit Voltage145VDC
Max Solar Charging Current60A per phase
Max AC Charging Current60A per phase80A per phase
Max Charging Current120A per phase140A per phase
OTHER
Communication terminalRS485/CAN bus
Operation Temperature Range-25℃~+50℃
Environmental Protection RatingIP20
Ambient humidity0~90% relative humidity(non-condensing)
Altitude≤2000m
