TECHNICAL PARAMETERS (STC*) | ||||
Rated Power | 90W | 95W | 100W | |
Maximum system voltage | 1000Vdc | |||
Rated Voltage Vmpp (V) | 21.45 | 17.20 | 19.15 | |
Rated current Imp (A) | 4.20 | 5.53 | 5.23 | |
Open circuit voltage (Voc) | 25.20 | 20.20 | 22.50 | |
Short circuit current (Isc) | 4.71 | 6.24 | 5.87 | |
Conversion effeciency | 17.5% ~ 18.5% | |||
Operating temperature | -40°C ~ +85°C | |||
Maximum load capacity | 5400pa | |||
MECHANICAL DATA | ||||

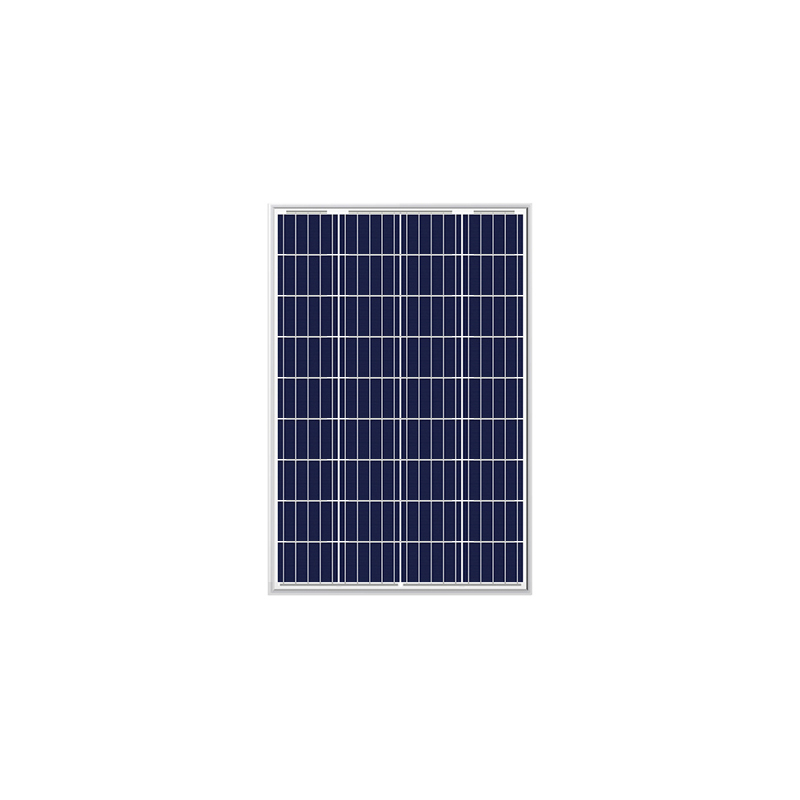

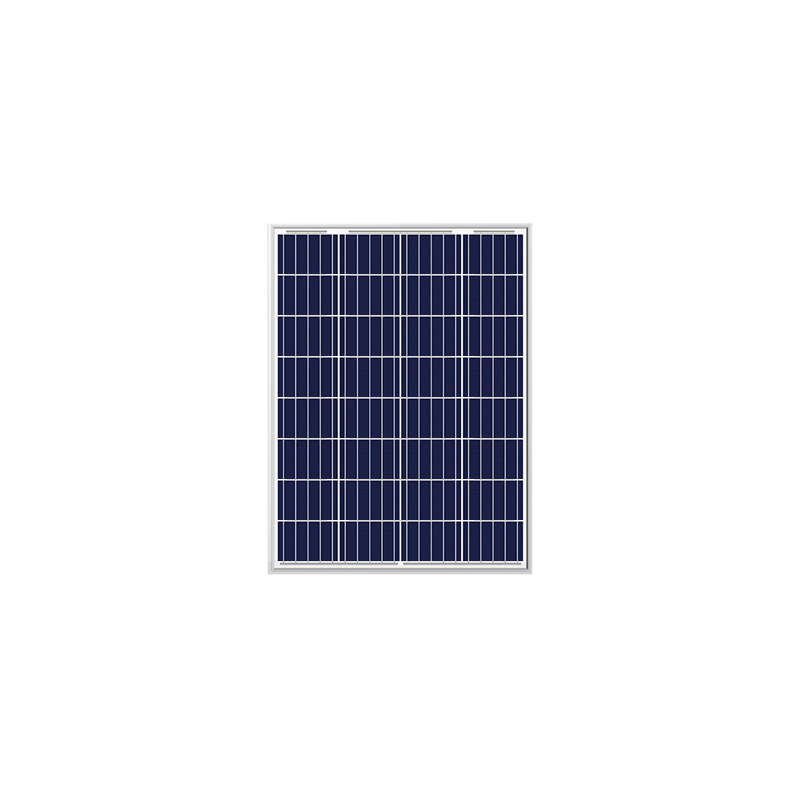

Cell layout | 40-H | 48-T2 | 49-T2 | |

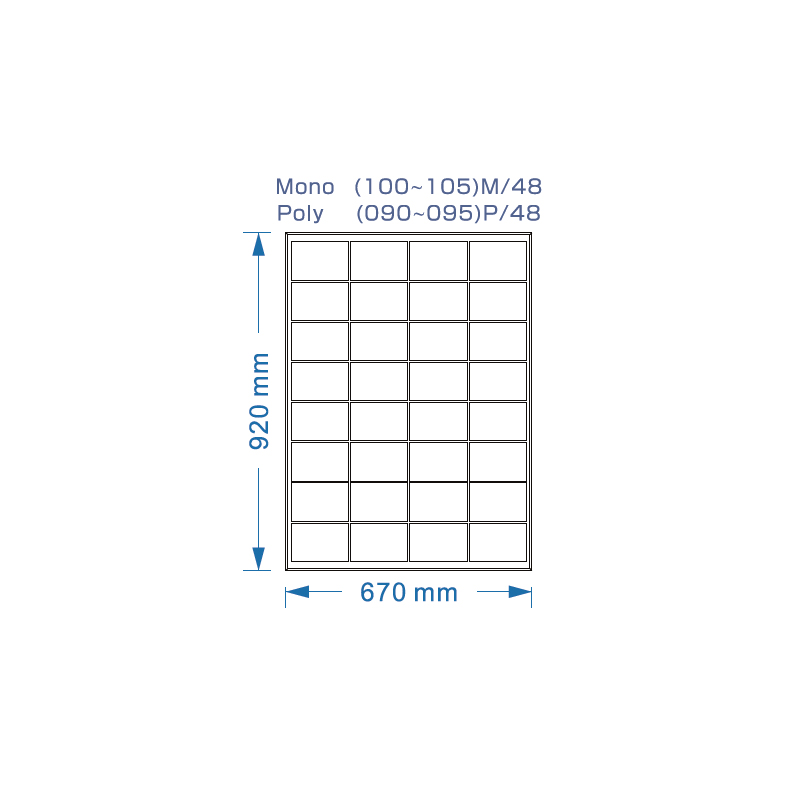

Dimensions | 855*670*30mm | 920*670*35mm | 1010*670*35mm | |
Cable | Optional / Customizable length | |||
Connector | MC4 compatible | |||
Frame | Anodized Aluminium Alloy | |||
Glass type | Low iron | Tempered | 3.2mm thickness | |||
Junction box | IP65 or IP67 | customized | |||
Weight | 5.5 kg | 7.0 kg | 8.0 kg | |
WARRANTY | ||||
Warranty | 18-month | |||
Designed lifespan | >15 years |
