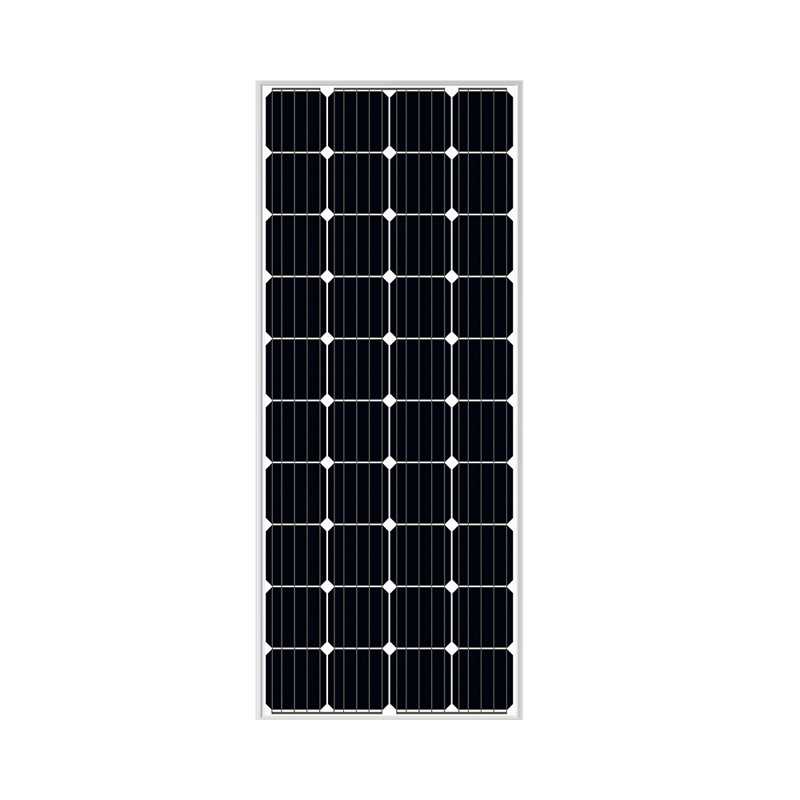

150W~200W Mono Small Modules

Automatic production line provides different sizes and output power modules for each customer. Using high-precision laser cutting technology according to the demand of electrical performance, the cell is cut into two half or one third or one quarter. We strictly control the quality of each small module based on the production process of the standard module.
BRAND
:
MODEL
:
FEPM Series
POWER
:
150W~200W
CELL
:
156mm Mono 5BB Cell
MODULE
:
48-S/49-S/40-S
WARRANTY
:
5 YEARS
  Datasheet Download
  • DETAILS
TECHNICAL PARAMETERS (STC*)
Rated Power 150W 160W 180W 200W
Maximum system voltage 1000Vdc
Rated Voltage Vmpp (V) 17.35 17.6 19.9 22.12
Rated current Imp (A) 8.65 9.10 9.05 9.05
Open circuit voltage (Voc) 20.38 20.89 23.55 26.20
Short circuit current (Isc) 9.55 9.91 9.87 9.81
Conversion effeciency 17.5% ~ 18.5%
Operating temperature -40°C ~ +85°C
Maximum load capacity 5400pa
MECHANICAL DATA
Cell layout 48-S 48-S 49-S 40-S

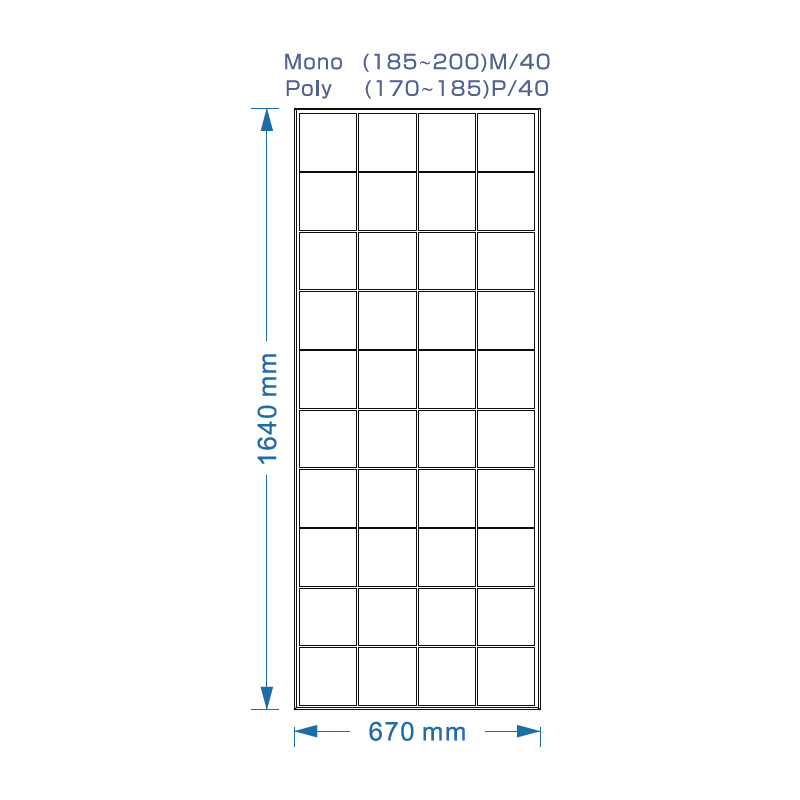

Dimensions 1330*670*35mm 1330*670*35mm 1480*670*35mm 1640*670*35mm
Cable Optional / Customizable length
Connector MC4 compatible
Frame Anodized Aluminium Alloy
Glass type Low iron | Tempered | 3.2mm thickness
Junction box IP65 or IP67 | customized
Weight 10 kg 10 kg 11.5 kg 12.5 kg
WARRANTY
Warranty 18-month
Designed lifespan >15-year
