| TECHNICAL PARAMETERS (STC*) | ||||
| Model | FEPM-100NF | |||
| Maximum Power(Pmp) | 100W | |||
| Power Tolerance | 0~+5% | |||
| Cell Efficiency | > 22% | |||
| Max. Power Voltage(Vmp) | 17.6V | |||
| Max. Power Current(Imp) | 5.8A | |||
| Operating Temperature | -40℃~+85℃ | |||
| MECHANICAL DATA | ||||
| Dimensions | > 1050*540*3mm | |||
| Packaging Dimensions | > 1100*580*30mm | |||
| Weight | 1.8 kg | |||
| Solar Cells | N-type Mono-crystalline 125x125mm | |||
| Front Surface | PET | |||
| Back Cintact | Fibre glass/PET | |||
| Lamination | Waterproof cloth | |||

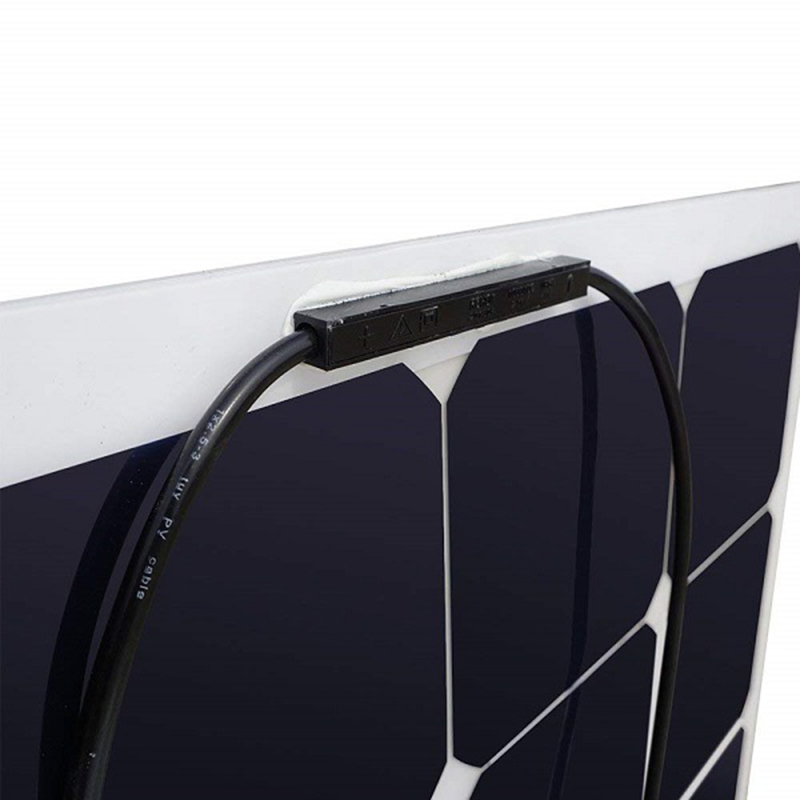

| Cable | 1000mm / Customizable length | |||
| Output Ports | N/A | |||
| Connector | MC4 Compatible/SAE | |||
| WARRANTY | ||||
| Warranty | 12-month | |||
| Designed lifespan | >5-year | |||
